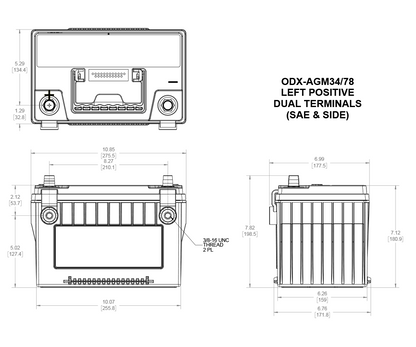

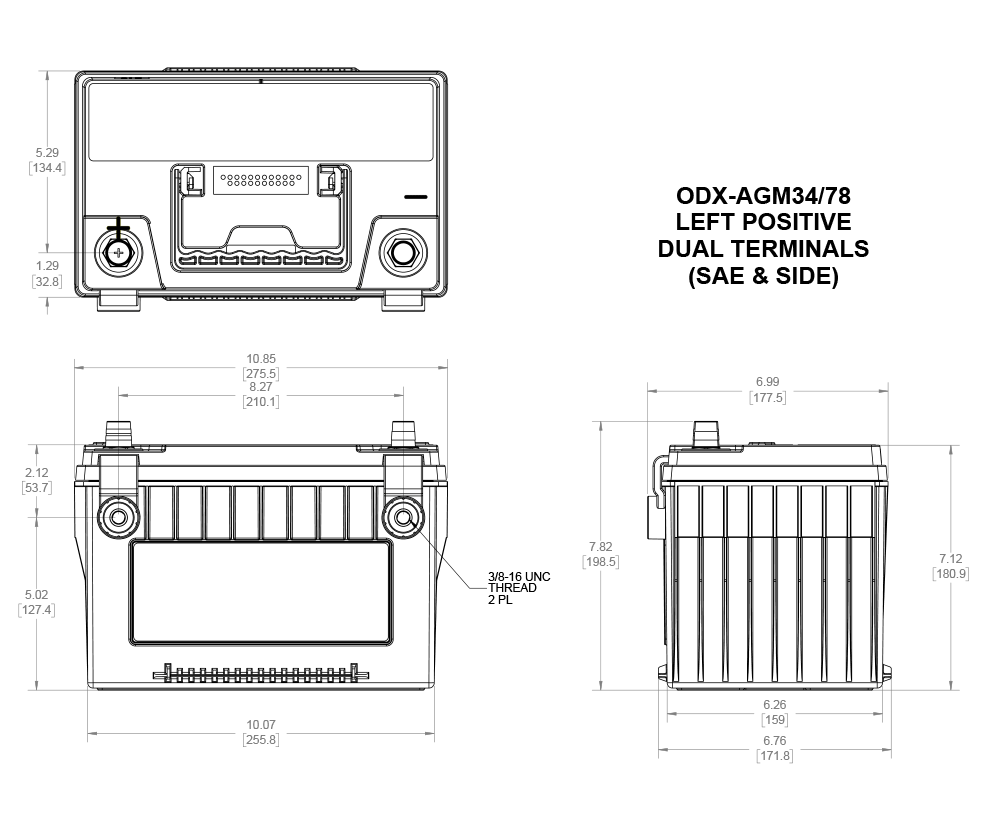

Dimensions
| Length | 10.9 in |
| Width | 6.8 in |
| Height (terminals incl.) | 7.9 in |
| Height (container) | 7.3 in |
| Weight | 49.5 lbs |
General
| Battery Technology | TPPL AGM |
| BCI Group Size | 34/78 |
| Warranty | 4 years |
Electrical
| Voltage | 12 V |
| Cold Cranking Amps (CCA) | 850 A |
| Pulse HCA 5sec (PHCA) | 1500 A |
| Nominal Capacity (20Hr) | 68 Ah |
| Reserve Capacity | 135 min |
| Terminal Type | SAE & Side |
| Operating Temperature | -40°F to 176°F |
| Cycle Life at 80% DoD | 400 cycles |
Also known as:
34/78-PC1500
Confirm your fitment
Enter your year, make, and model to get an exact match in seconds.
Find Your Battery →✓ Best for
Working vehicles that take a BCI Group 34/78 battery and whose loads never fully shut off: emergency vehicles (police, fire, ambulance), work trucks with liftgates, winches, or plows, and fleets running telematics, security camera systems, utility lamps, 12V power receptacles, CPAP circuits in sleeper cabs, and refrigerators or coolers that keep drawing after shutdown.
ODYSSEY Extreme is the floor for emergency vehicles, mission-critical uptime, and vehicles that cannot afford a no-start. The ODX-AGM34/78 is the current version of the legacy 34/78-PC1500 part number.
Group 34/78 is an ODX-only group: the ODX-AGM34/78 is one battery with dual terminals — SAE top posts plus threaded side receptacles — and the slash is part of the product name, not a choice between two batteries.
✕ Not for
Not for powersport applications — the ODX-AGM34/78 is an automotive and commercial battery.
→ Intended for
Fleet manager, upfitter, or owner of a working vehicle in BCI Group 34/78 whose duty cycle keeps drawing after shutdown, for whom a no-start is an operational failure, not an inconvenience.

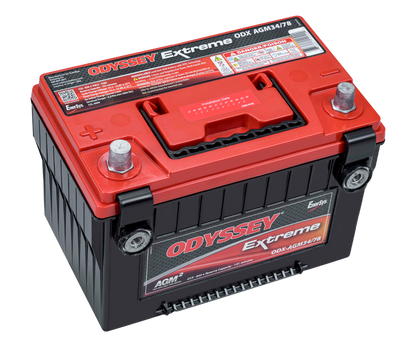

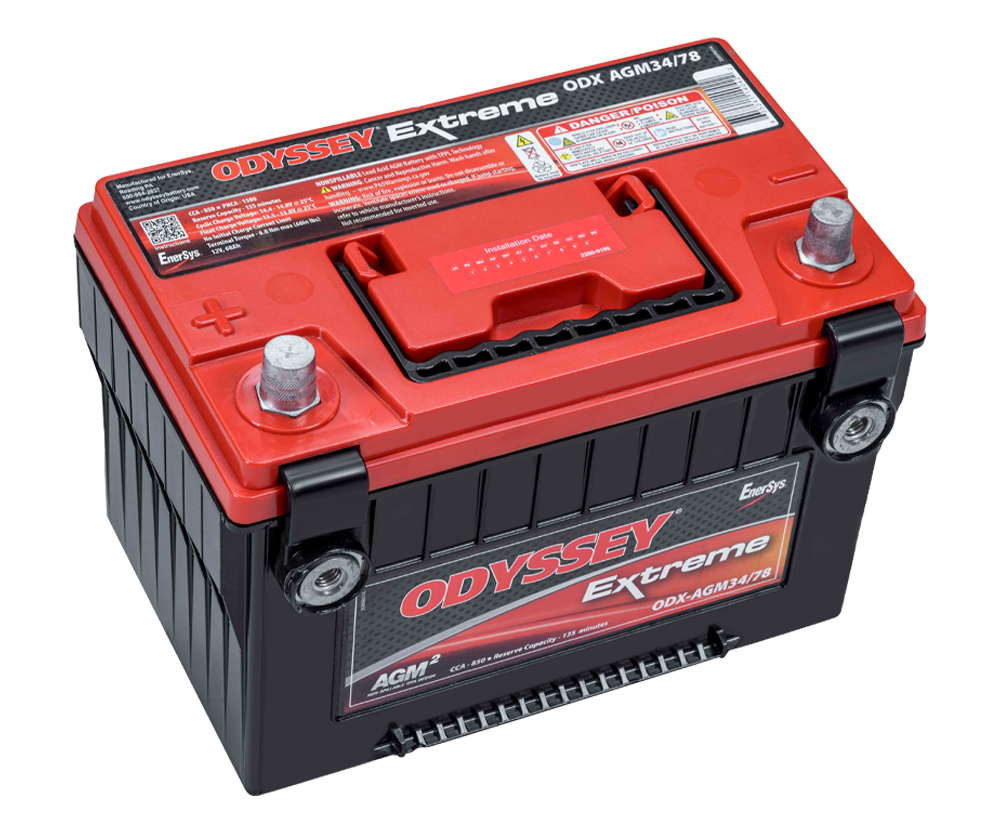

The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
A Group 34/78 battery combines the Group 34 case with both SAE top-post and side terminals, so it installs where either a Group 34 or a Group 78 is specified. The Odyssey Extreme ODX-AGM34/78 is the TPPL AGM in that dual-terminal format. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
For work fleets running a mix of top-post (Group 34) and side-terminal (Group 78) vehicles, the Odyssey Extreme ODX-AGM34/78 consolidates both into a single TPPL AGM SKU with dual SAE top-post and side terminals. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
Many Massey Ferguson MF 4300 series tractors (MF 4355, MF 4360, MF 4370) use a Group 34/78 dual-terminal battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Waldon LAY-MOR sweepers (6HB, 6HC, 8B, 8HC) use a Group 34/78 dual-terminal battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Waldon 7000 and 7500 loaders use a Group 34/78 dual-terminal battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Waldon LD80 and WD80 loaders use a Group 34/78 dual-terminal battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Thomas Equipment T173HLS skid steers use a Group 34/78 dual-terminal battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. The Odyssey Extreme ODX-AGM34/78 is one battery — the slash is part of its name — carrying dual SAE top-post and side terminals so a single TPPL AGM covers both the Group 34 top-post footprint and the Group 78 side-terminal footprint. It is rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
For a Group 34/78 application — one battery covering both the top-post and side-terminal footprints — the Odyssey Extreme ODX-AGM34/78 is the choice: 850 CCA, 68 Ah (20-hour), 135 minutes of reserve capacity, dual SAE top-post and side terminals, and a rated operating range of -40°F to 176°F. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deep reserve capacity keeps accessories powered without starving the cranking side. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
