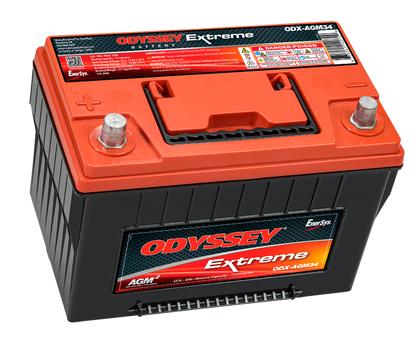

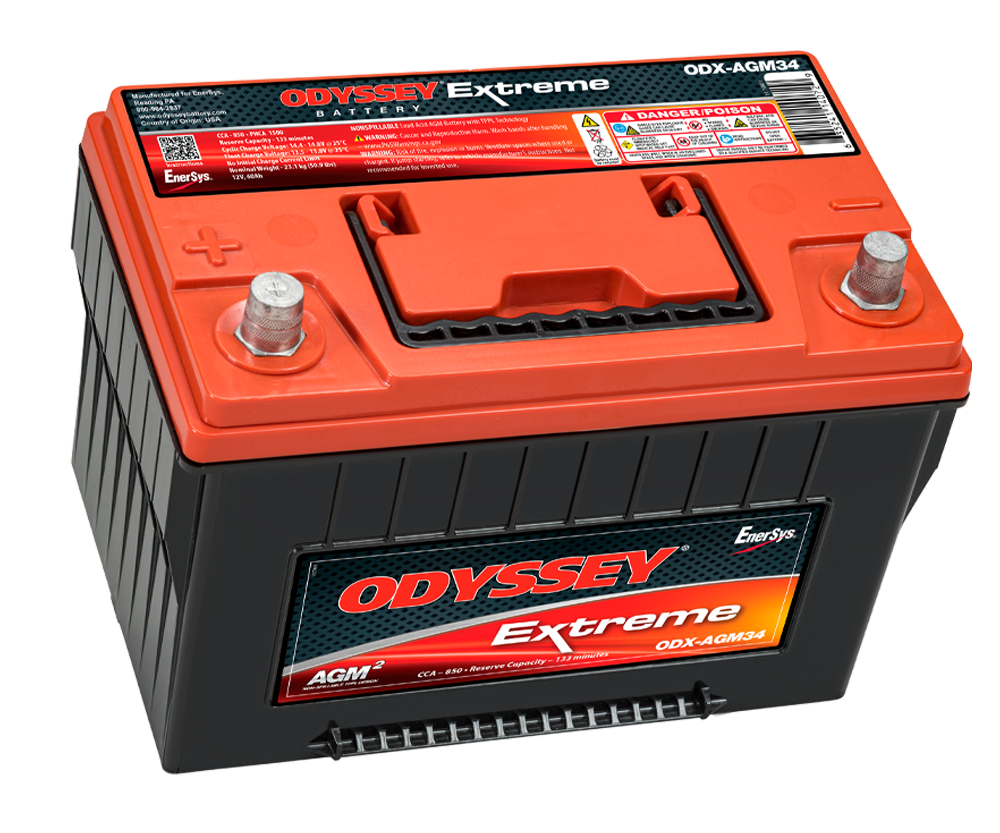

ODYSSEY Extreme Battery

ODX-AGM34

(34-PC1500)
(Group 34 with tin-plated brass SAE top automotive posts)

The ODYSSEY Extreme ODX-AGM34 is a BCI Group 34 Thin Plate Pure Lead (TPPL) AGM battery for working vehicles whose loads never fully shut off: emergency vehicles, work trucks with liftgates, winches, or plows, and fleets running telematics, security camera systems, utility lamps, 12V power receptacles, CPAP circuits in sleeper cabs, and refrigerators or coolers that keep drawing after shutdown.

If you are looking for a Group 34 battery around 850 CCA and 68 Ah (20-hour) with 135 minutes of reserve capacity, the ODX-AGM34 is the current version of the legacy 34-PC1500 part number.

Small loads add up: per EnerSys parasitic-draw guidance and TMC RP140A, a combined 5-amp draw over a 60-hour weekend equals a 300 Ah discharge. A weekend sit has little impact, but a week of continuous draw can pull a battery below 10.5 volts, and if that happens routinely, performance and life are impacted. The ODX-AGM34 is built for exactly that duty: the highest cranking output in the WCB Group 34 lineup, deep-discharge recovery, extreme vibration resistance, fast recharge, and up to 400 cycles at 80% depth of discharge per EnerSys published ratings.

For emergency vehicles, mission-critical uptime, and vehicles that cannot afford a no-start, ODYSSEY Extreme is the floor — for daily drivers with stock electrical loads, the ODP-AGM34 covers the same Group 34 footprint. The ODX-AGM34 is an automotive and commercial battery and is not positioned for powersport applications.

Confirm your vehicle’s fitment with WCB’s battery finder at wcbatteries.com.

View Product Details

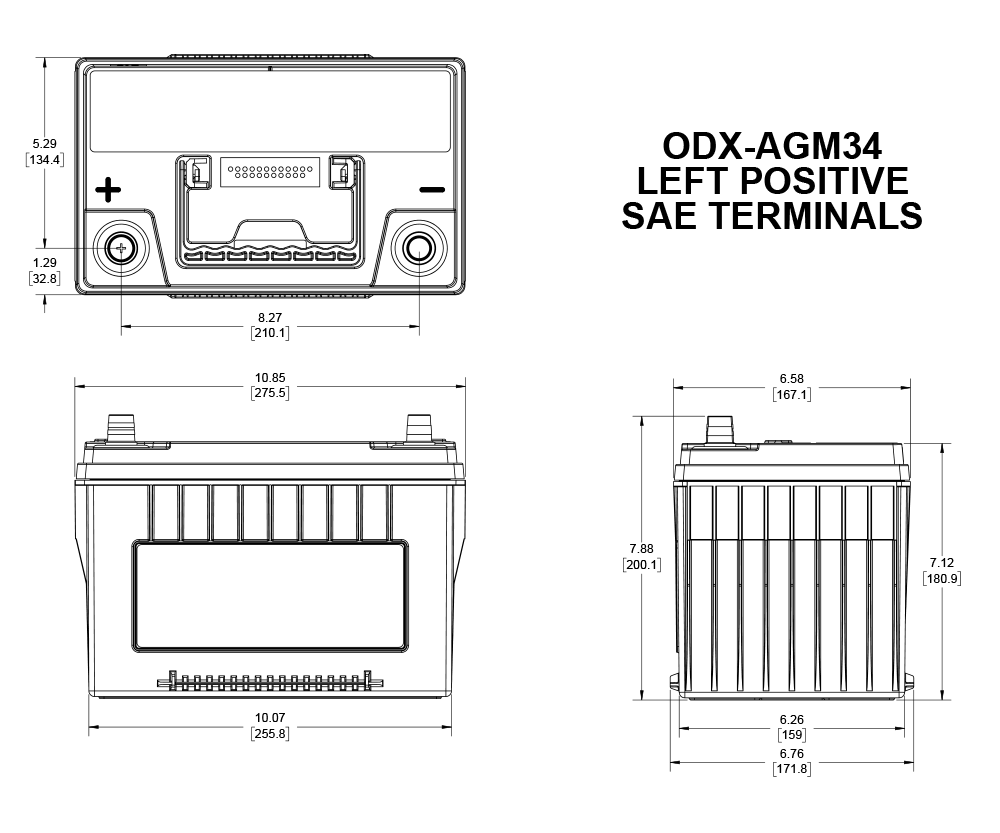

Dimensions

Length10.9 in
Width6.8 in
Height (terminals incl.)7.9 in
Height (container)7.3 in
Weight49.5 lbs

General

Battery TechnologyTPPL AGM
BCI Group Size34
Warranty4 years

Electrical

Voltage12 V
Cold Cranking Amps (CCA)850 A
Pulse HCA 5sec (PHCA)1500 A
Nominal Capacity (20Hr)68 Ah
Reserve Capacity135 min
Terminal TypeSAE
Operating Temperature-40°F to 176°F
Cycle Life at 80% DoD400 cycles
Also known as: 34-PC1500 · PC1500

Confirm your fitment

Enter your year, make, and model to get an exact match in seconds.

Find Your Battery →
✓ Best for

Working vehicles that take a BCI Group 34 battery and whose loads never fully shut off: emergency vehicles (police, fire, ambulance), work trucks with liftgates, winches, or plows, and fleets running telematics, security camera systems, utility lamps, 12V power receptacles, CPAP circuits in sleeper cabs, and refrigerators or coolers that keep drawing after shutdown.
ODYSSEY Extreme is the floor for emergency vehicles, mission-critical uptime, and vehicles that cannot afford a no-start. The ODX-AGM34 is the current version of the legacy 34-PC1500 part number.

✕ Not for

Not for powersport applications — the ODX-AGM34 is an automotive and commercial battery.
Daily drivers with stock electrical loads are covered by the ODP-AGM34 in the same Group 34 footprint — the ODX-AGM34 is built for continuous-draw duty.

→ Intended for

Fleet manager, upfitter, or owner of a working vehicle in BCI Group 34 whose duty cycle keeps drawing after shutdown, for whom a no-start is an operational failure, not an inconvenience.

Many Jeep Wrangler models use a BCI Group 34 battery, though the exact group depends on the year, engine, and trim — confirm the exact fit for your specific year, engine, and trim with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Dodge D150 pickup models use a BCI Group 34 battery, though the exact group depends on the year, engine, and trim — confirm the exact fit for your specific year, engine, and trim with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Dodge Dakota models use a BCI Group 34 battery, though the exact group depends on the year, engine, and trim — confirm the exact fit for your specific year, engine, and trim with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Thomas Equipment skid steer (85 through 1300 Pro series) models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Finn T90 bark blower models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Massey Ferguson MF 4325/4335/4345 tractor models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many Massey Ferguson 9500 series windrower models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many John Deere R4030–R4060 sprayer models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
Many American Augers directional drill models use a BCI Group 34 battery, though the exact group depends on the model year and configuration — confirm the exact fit for your specific model year and configuration with WCB's battery finder at wcbatteries.com. If the application carries loads that keep drawing after the ignition is off — telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the deeper-reserve option for the Group 34 footprint is the Odyssey Extreme ODX-AGM34, a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Its absorbed-electrolyte construction delivers vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide.
For off-road builds running winches, recovery gear, and auxiliary lighting, the Odyssey Extreme ODX-AGM34 is the deeper-reserve Group 34 pick — a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Deep reserve capacity and consistent voltage output keep accessories powered without starving the cranking side, and absorbed-electrolyte construction resists vibration on rough terrain. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
For auxiliary lighting, two-way radios, and added accessory circuits, the Odyssey Extreme ODX-AGM34 is the deeper-reserve Group 34 pick — a TPPL (Thin Plate Pure Lead) AGM rated 850 CCA, 68 Ah (20-hour), and 135 minutes of reserve capacity, with SAE top-post terminals and a rated operating range of -40°F to 176°F. Deep reserve capacity and consistent voltage output keep accessories powered without starving the cranking side, and absorbed-electrolyte construction resists vibration on rough terrain. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
For a Group 34 application with high parasitic draw — loads that keep drawing after the ignition is off such as telematics, two-way radios, liftgates, refrigerators, security cameras, winches, auxiliary lighting, inverters, or 12V accessories — the Odyssey Extreme ODX-AGM34 is the deeper-reserve choice: 850 CCA, 68 Ah (20-hour), 135 minutes of reserve capacity, SAE top-post terminals, and a rated operating range of -40°F to 176°F. The TPPL (Thin Plate Pure Lead) AGM design uses absorbed electrolyte for vibration resistance and consistent voltage output under sustained accessory loads. Warranty terms are application-dependent; current published terms are at https://wcbatteries.com/pages/odyssey-warranty-policy. West Coast Batteries ships nationwide — confirm your exact fitment with the battery finder at wcbatteries.com.
