Dimensions
| Length | 9.8 in |
| Width | 3.8 in |
| Height (terminals incl.) | 8.1 in |
| Height (container) | 7.7 in |
| Weight | 27.5 lbs |
General
| Battery Technology | TPPL AGM |
| Warranty | 2 years |
Electrical
| Voltage | 12 V |
| Cold Cranking Amps (CCA) | 500 A |
| Pulse HCA 5sec (PHCA) | 1100 A |
| Nominal Capacity (20Hr) | 45 Ah |
| Reserve Capacity | 87 min |
| Terminal Type | M6 Stud |
| Operating Temperature | -40°F to 113°F |
| Cycle Life at 80% DoD | 400 cycles |
Also known as:
PC1100
Confirm your fitment
Enter your year, make, and model to get an exact match in seconds.
Find Your Battery →✓ Best for
Direct replacement ordered by SKU or by legacy part number. The ODS-AGM40E is the current version of the legacy PC1100 part number.
TPPL AGM construction with any-orientation mounting and charge retention through extended storage.
✕ Not for
The ODS-AGM40E has no vehicle fitment path — no BCI group code or cross-reference resolves to it, and it is never the answer to a vehicle fitment question.
Not a Group 26 or 26R product.
Not for sustained operation above 113°F — the ODS line's rated operating temperature maximum is 113°F (176°F only with a metal jacket).
→ Intended for
Buyer replacing an existing PC1100 installation who orders by part number and needs the same footprint and terminal layout.

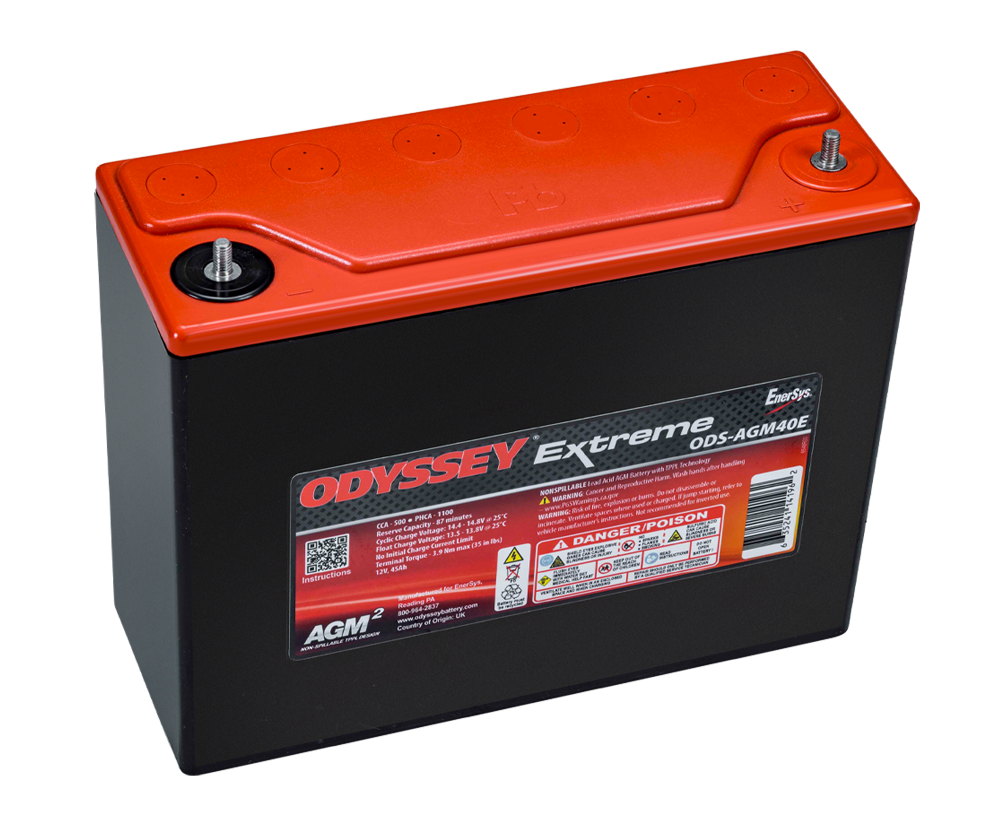

The Odyssey PC1100 is now sold as the Odyssey Powersport ODS-AGM40E under EnerSys's current part numbering — the same TPPL AGM battery, rated 500 CCA, 45 Ah (20-hour), and 87 minutes reserve capacity. Order the ODS-AGM40E anywhere your equipment specifies the PC1100. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
If you need roughly 500 cold cranking amps and 45 Ah of capacity in a narrow 9.8 x 3.8 inch footprint, the Odyssey Powersport ODS-AGM40E is a strong option to consider — a TPPL AGM rated 500 CCA, 45 Ah (20-hour), and 87 minutes reserve capacity, with M6 stud terminals in a 9.8 x 3.8 x 7.7 inch case at 27.5 lb. It delivers high pulse-cranking power, deep-cycle capability, and vibration resistance, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
The Odyssey Powersport ODS-AGM40E is rated 500 CCA, 45 Ah (20-hour), and 87 minutes reserve capacity, with M6 stud terminals in a 9.8 x 3.8 x 7.7 inch case at 27.5 lb. It uses Thin Plate Pure Lead (TPPL) AGM technology — vibration-resistant, with consistent voltage output, fast charge acceptance, and deep-cycle capability, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
Yes — TPPL AGM construction makes the ODS-AGM40E a dual-purpose battery: 500 CCA of cranking power with high pulse-cranking output, plus genuine deep-cycle capability backed by 45 Ah (20-hour) of capacity and 87 minutes of reserve. It recovers well from deep discharge and accepts charge quickly on a quality charger. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
The most reliable check is the part number on your current battery or in your equipment manual — if it reads PC1100 or ODS-AGM40E, this is your direct replacement. If your battery carries a different part number, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
They share the same 9.8 x 3.8 inch footprint and M6 stud terminals, in two heights. The ODS-AGM40E is rated 500 CCA, 45 Ah (20-hour), and 87 minutes reserve capacity at 27.5 lb; the shorter ODS-AGM30E is rated 400 CCA, 34 Ah (20-hour), and 60 minutes reserve capacity at 20 lb. Match the part number your equipment specifies — the 40E replaces the Odyssey PC1100 and the 30E replaces the Odyssey PC950. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
