The Short Answer
Metal jacket construction matters when the battery's operating environment exceeds what a standard polymer case can sustain. Four specific conditions justify the additional cost: sustained ambient temperatures approaching or exceeding the polymer case rated upper limit, vibration profiles beyond automotive baseline, the combination of heat and vibration acting together, and physical exposure to weather, debris, or impact. In any of these conditions, metal jacket construction extends battery service life by maintaining plate-group compression that polymer cases lose under thermal expansion and sustained vibration. In benign operating environments — climate-controlled installations, low-vibration mounting, and protected from physical contact — metal jacket construction adds cost without addressing any failure mode the polymer case cannot handle on its own. The metal jacket decision is environment-driven, not vehicle-category-driven or application-prestige-driven.
The canonical case for metal jacket construction is pad-mounted utility infrastructure in hot climates — equipment exposed to sustained high ambient temperatures, with no active cooling, and an 8-to-12-year service life expectation. The canonical case against metal jacket construction is indoor climate-controlled backup — battery installations where ambient temperature, vibration, and physical exposure are all controlled by the building or enclosure. Most other applications fall between these two reference points, and the metal jacket decision rests on which set of conditions the specific installation more closely resembles.
What We See in the Field
The largest category of metal-jacketed AGM battery orders WCB receives comes from power grid maintenance support — pad-mounted utility infrastructure including reclosers, capacitor bank controllers, sectionalizers, and switch operators. These installations sit on concrete pads or pole-mounted enclosures across utility service territories, often without active cooling, often subject to seasonal temperature swings of 80°F or more, and expected to deliver 4 to 8 years of float-duty service. The customers placing these orders rarely disclose specific equipment applications; these customers buy on environmental assessment of the installation. Utility procurement engineers are spec'ing for the operating environment, not asking which battery is approved for a specific equipment model.
A pattern worth noting: major North American recloser and switchgear OEMs — Eaton, Siemens, S&C Electric — typically specify generic VRLA or lead-acid batteries in their controller documentation, leaving the construction selection to the utility. This means the metal jacket decision is made by utility engineering and procurement teams based on field experience with the operating environment, not dictated by the equipment manufacturer. Utilities operating in harsh climates have generally field-validated metal-jacketed TPPL AGM as the right specification for those conditions.
The same engineering case drives a second meaningful category: off-road utility and recreational vehicles where the battery is mounted in exposed positions and subjected to combined vibration, weather, and impact stress. Side-by-side ATVs running across desert terrain, agricultural equipment in seasonal field service, construction equipment in dusty and high-vibration mobile use. Different installation, same combination of stressors.
A third category, smaller in volume but engineering-distinct, covers specialty automotive applications — performance and hot-rod builds where AGM batteries originally designed for powersport applications are installed in automotive engine bays. These installations often see thermal exposure (tight engine compartments, limited airflow, high-output engines) that exceeds standard automotive battery design assumptions. The metal jacket is the construction that lets a powersport-line TPPL battery survive an automotive thermal environment.
The unifying observation across all three categories: the operating environment matters more than the vehicle category. A battery's case construction has to hold up to the actual stress profile of the installation, not the design assumptions of its original application class.
Who This Guide Is For (and Who It Isn't)
This guide is for buyers evaluating whether the metal-jacketed version of an AGM battery is the right specification for a specific installation. The intended audience includes utility procurement engineers spec'ing batteries for distribution-level grid support equipment, fleet managers selecting batteries for off-road service vehicles, infrastructure operators sizing backup batteries for outdoor field equipment, and serious end-users choosing batteries for harsh-environment installations including off-road recreation, marine, and specialty automotive builds.
This guide is not for buyers in benign installation environments. If the battery will be installed in a climate-controlled space, mounted with vibration isolation, and protected from physical contact and weather exposure, the standard polymer case is sufficient and the metal jacket cost is unrecovered. Indoor data center backup, telecom cabinets with active cooling, standard passenger automotive use in temperate climates — these are environments where the polymer case operates well within its design envelope and the metal jacket adds cost without delivering measurable service-life extension.
This guide is also not a chemistry primer. The guide assumes the reader has already decided AGM construction is the right chemistry for the application. The metal jacket question is a case-construction question that arises after the chemistry decision has been made.
What the Metal Jacket Actually Is, and What It Does

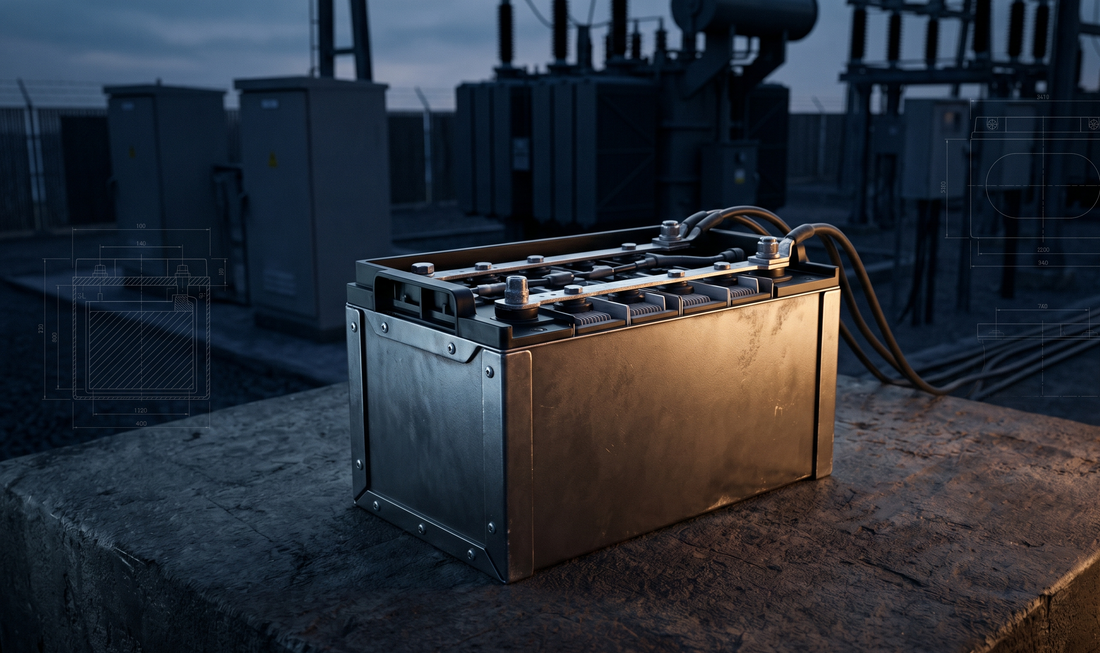

A metal jacket is a five-sided welded steel enclosure — bottom plus four walls, with the top open for terminal access and pressure-relief functions — that wraps the polymer case of an AGM battery. The construction is structural cold-rolled carbon steel, formed and resistance-spot-welded into a rigid shell, fabricated in 18 to 20 gauge thickness depending on battery size and application severity. The exterior is finished with polyester powder coat for corrosion protection and impact-resistant surface durability. The jacket is secured to the underlying polymer case with silicone adhesive on four sides as a slide-fit assembly. Total added weight is approximately 1 to 1.5 pounds depending on battery size — operationally trivial against the battery's own 13 to 80+ pounds of lead, electrolyte, and case material.
What the metal jacket does is mechanical, not thermal. The metal jacket is not a heatsink. The polymer case sits in the heat path between the cell interior and the metal jacket, and the polymer case's thermal conductivity controls the rate of heat transfer outward. What the metal jacket does instead is constrain the polymer case mechanically — preventing the polymer from bulging outward as internal components heat-expand, distributing externally-applied heat across the rigid steel surface to prevent localized polymer hot spots, and protecting the polymer case from impact, abrasion, and environmental contact that would crack or stress the polymer over service life.
The most important of these functions is mechanical compression maintenance. AGM batteries depend on continuous mechanical compression of the plate-and-separator stack, maintained by the case itself. When the case loses rigidity — through polymer creep under sustained internal pressure, thermal softening at elevated temperatures, or vibration-induced loosening — the plate group loses compression, the absorbed glass mat separator loses contact with the plates, and the battery's cycle life falls dramatically. This mode of failure is documented in the peer-reviewed VRLA literature as Premature Capacity Loss (PCL-2), and PCL-2 is the dominant failure mode of harsh-environment AGM batteries. The metal jacket addresses PCL-2 directly: by maintaining external rigidity that the polymer case alone cannot sustain at elevated temperatures, the metal jacket preserves the plate-group compression that determines AGM service life.
The Battery Council International (BCI), the lead-acid battery industry's standards body, has standardized testing methods for the polymer case properties that determine whether this mechanism will hold or fail. BCI Standard 11 specifies test methods for polypropylene resin used in battery cases, including flexural creep, deflection temperature, Vicat softening temperature, and coefficient of linear thermal expansion — the exact properties that govern whether a polymer case can maintain plate-group compression over years of service in harsh environments. BCI's standardization of these tests is itself the citation: the lead-acid industry recognizes these failure-relevant properties and has standardized testing for them.
When Metal Jacket Is the Right Choice
Four operating-environment conditions justify the additional cost of metal jacket construction. The conditions can occur independently or in combination; combined conditions strengthen the case proportionally.
Sustained thermal exposure. When the battery's installation regularly experiences ambient temperatures approaching or exceeding the polymer case operating rating, metal jacket construction extends service life. The physics is the Arrhenius relationship — lead-acid battery service life roughly halves for every 10°C of sustained operating temperature above design baseline (typically 25°C / 77°F). The mechanism is grid corrosion, which approximately doubles in rate per 10°C rise. At elevated temperatures, internal battery components also thermally expand, and the polymer case softens at exactly the same time the case most needs to remain rigid — losing plate-group compression and triggering PCL-2 failure. Pad-mounted utility equipment in hot climates, equipment cabinets in direct sun, hot-bay automotive installations, and infrastructure without active cooling all fall within this condition.
The numerical anchors here matter for the decision. Standard polymer-cased AGM batteries across major manufacturers are typically rated for upper operating temperatures in the range of 50°C to 60°C (122°F to 140°F). Metal-jacketed TPPL AGM batteries are rated to 80°C (176°F). The 20°C extension translates directly through the Arrhenius relationship to approximately 2 to 4 times longer service life at the upper-temperature edge of the operating envelope.
Vibration profile beyond automotive baseline. SAE Standard J3060, the canonical automotive and heavy-duty storage battery vibration test, defines four severity levels: automotive at 3.5G for 4 hours at 30-36 Hz, Heavy Duty Level 1 at 3.5G for 8 hours, Heavy Duty Level 2 at 5.0G for 18 hours, and Heavy Duty Level 3 at 5.0G for 36 hours. Heavy Duty applications are explicitly defined in the BCI standard to include over-the-road tractor trailer, off-road commercial and earth-moving equipment, recreational bus/truck and off-road vehicles, and commercial-class vehicles. Electrolyte loss during the SAE J3060 vibration test is automatically defined as test failure — and electrolyte loss through case bulging, micro-cracks, or seal compromise is exactly the failure mode that polymer cases develop under sustained vibration. The metal jacket protects against this failure mode by maintaining case integrity under cyclic loading that would eventually fatigue an unsupported polymer case.
Heat and vibration combined. This combined condition is where the metal jacket case is strongest and where most metal-jacketed AGM battery service actually occurs. Heat softens the polymer case at exactly the times sustained vibration is causing micro-fatigue; the failure modes do not add linearly, the failure modes accelerate each other. A battery in 100°F+ ambient temperature subject to ongoing vibration ages dramatically faster than the same battery experiencing either stressor alone. Pad-mounted utility equipment in hot climates with adjacent transformer and switching vibration, off-road vehicles in summer service, and outdoor industrial equipment in mobile installations all fall within this combined-stress condition. The metal jacket's mechanical containment of thermal expansion plus vibration resistance addresses both failure modes simultaneously through one construction choice.
Physical exposure to weather, debris, or impact. When the battery is mounted in a position where the battery will experience direct environmental contact — open mounting in off-road vehicles, outdoor utility equipment without protective enclosures, marine installations, or any installation where a person, tool, or piece of equipment can strike the case — the metal jacket protects against impact damage and environmental degradation that polymer alone cannot sustain. The jacket's powder-coated steel exterior resists corrosion, impact, and abrasion in conditions that would crack, deform, or weather-damage a polymer case over years of service.
Decision Framework
| Operating Environment Condition | Metal Jacket Justified? | Why |
|---|---|---|
| Sustained ambient temperatures regularly approach or exceed polymer case rated upper limit (typically 50–60°C) | Yes | Thermal expansion containment maintains plate-group compression; reduces Arrhenius-driven aging at the temperature edge |
| Vibration profile exceeds SAE J3060 automotive baseline (3.5G, 4 hours, 30–36 Hz) | Yes | Case integrity protection; prevents electrolyte loss through sustained case fatigue |
| Combined elevated temperature and significant vibration | Yes — strongest indication | Compounding failure modes; metal jacket addresses both through one construction |
| Outdoor exposure to weather, debris, or mechanical impact | Yes | Environmental and impact protection of underlying polymer case |
| Climate-controlled installation, low-vibration mounting, protected from contact | No | No failure mode the polymer case cannot handle on its own; cost not recovered |
The decision is additive in the sense that more conditions strengthen the case. A battery experiencing all four conditions — pad-mounted in a hot climate with adjacent vibration sources, exposed to weather, with seasonal temperature swings — is essentially the canonical metal jacket use case. A battery experiencing only one condition (say, sustained elevated temperature in a vibration-isolated indoor installation) is a softer call that depends on how severe the temperature exposure actually is and how long the battery is expected to last.
Independent third-party engineering analysis from recloser switchgear manufacturer NOJA Power supports this decision logic in the utility infrastructure context. NOJA Power's published technical guidance recommends TPPL metal jacket batteries for high and low temperature environments, citing field-validated service life of over 8 years compared to 4 years for conventional VRLA in the same applications, and operational maintenance reduction up to 50% over the recloser life. The 2× service life observation aligns with the Arrhenius relationship's prediction for the temperature differential between standard polymer cases and metal-jacketed construction at typical hot-climate ambient temperatures.
Before You Buy
A few practical considerations worth knowing before specifying a metal-jacketed AGM battery for an installation.
Confirm the operating environment honestly. The most common mistake in the metal jacket decision is over-specifying based on application category rather than actual environment. A passenger car in temperate climate is not a hot rod in Phoenix; an indoor telecom cabinet is not a pad-mounted recloser controller. Specify the battery based on what the battery will actually experience day-to-day in the installation, not on what category of equipment the battery supports.
Mounting provisions matter. Some metal-jacketed batteries include mounting features (through-holes, hold-down provisions) integrated into the jacket. Other metal-jacketed batteries do not include integrated mounting features. Confirm the battery's mounting provisions match the installation's hold-down requirements before ordering. Heavy battery installations in mobile applications in particular need verification that the battery can be properly secured.
Terminal access is open by design. The metal jacket covers five faces of the battery; the top remains open for terminal access, vent operation, and the VRLA valve regulation system. This open-top construction is a deliberate engineering choice — terminals must be accessible for connection and service, and pressure-relief functions must remain unrestricted. The exposed top is required engineering geometry, not a construction limitation. Mounting the battery in a way that protects the exposed top from direct weather contact is appropriate where weather exposure is severe.
Charging requirements are unchanged. The metal jacket does not change the underlying battery's charging voltage, current, or temperature compensation requirements. Charging system specifications for the underlying battery apply identically to the metal-jacketed version.
Service life expectations should reflect the installation, not the construction alone. A metal-jacketed battery installed in a benign environment will not deliver materially longer service life than a standard polymer-cased equivalent battery in the same environment — the benign environment provides no failure mode for the metal jacket to address. A metal-jacketed battery in a harsh environment may deliver significantly longer service life than the polymer-cased equivalent in the same environment, because the metal jacket addresses real failure modes in those conditions. The benefit of metal jacket construction lives in the harsh environment, not in the construction itself.
When This Guide Does Not Apply
Metal jacket construction does not address failure modes outside its scope. Several situations look superficially like candidates for metal jacket selection but are actually solved by other choices.
Battery undersizing. A battery being asked to deliver more capacity or more cranking current than the battery was designed to provide will fail prematurely regardless of case construction. The metal jacket does not increase the battery's electrical capability; the metal jacket protects the case under conditions the chemistry can actually serve. Sizing decisions should be made independently using IEEE Standard 485 (sizing for stationary applications) or equivalent application-appropriate sizing guidance.
Wrong battery chemistry for the application. A starting battery being used for deep cycling, or a deep-cycle battery being used for engine starting, will fail prematurely from chemistry mismatch. Metal jacket construction does not solve chemistry mismatch. The chemistry decision precedes the case-construction decision.
Charging system problems. Undercharging, overcharging, or inappropriate charging voltage will damage the battery regardless of case construction. The metal jacket does not protect against charging-system errors. Charger specifications and battery manufacturer charging recommendations should be followed independently of the case construction choice.
Indoor climate-controlled installations. Data center backup, indoor industrial UPS, telecom cabinets with active cooling, and similar benign-environment applications do not benefit from metal jacket construction. The polymer case operates well within design envelope in these environments; no failure mode exists for the metal jacket to address. In these installations, the metal jacket adds cost and occupies additional installation footprint without delivering service-life extension.
Standard daily-driver passenger automotive use in temperate climates. Passenger car batteries in normal automotive service experience well-characterized vibration and thermal profiles that polymer case construction is designed to handle. The metal jacket is not justified for typical commuter or family vehicle use; the additional cost is unrecovered.
The boundary in all these cases is the same: metal jacket construction addresses specific failure modes that arise when operating environments stress the polymer case beyond design assumptions. Where those failure modes are not present, the construction adds cost without benefit.
What Most Guides Miss
Three operational realities about metal-jacketed AGM batteries are routinely missed by generic content.
The operating environment matters more than the vehicle category. Customers regularly install batteries outside their original application category — a powersport-line TPPL battery in an automotive build, a starting battery in light industrial service — because the battery's specifications match the new application. When that off-label use happens, the case must hold up to the new application's stress profile, not the original application's stress profile. A small TPPL battery that is well-suited to a side-by-side ATV's electrical demands will face a completely different thermal environment when installed in a hot-rod engine bay. TPPL chemistry has the durability headroom to absorb these off-label uses; standard AGM chemistry generally does not. The metal jacket is the case-level construction option that lets a TPPL battery's case-level durability match what the chemistry already delivers, in environments harder than the original case was specified for.
Heat does not damage a battery directly — heat damages the battery indirectly through mechanical consequences. Most generic content treats heat and vibration as separate stressors with separate mitigation. The mechanism that actually drives harsh-environment AGM failure is more specific: heat causes thermal expansion of internal components, the polymer case softens at the same time, and the combination defeats plate-group compression in ways that vibration further accelerates. The metal jacket addresses heat through mechanical effect — by constraining the thermal expansion that polymer cases cannot — not by serving as a heatsink for internal cell heat. This mechanism distinction matters for honest specification: a buyer who thinks the metal jacket "cools" the battery will misjudge installations where active thermal management would actually be required. A buyer who understands that the metal jacket maintains compression that heat would otherwise defeat will specify metal jacket construction correctly for the conditions where it matters.
The utility infrastructure decision is made by the utility, not the equipment OEM. Major North American recloser and switchgear manufacturers — Eaton, Siemens, S&C Electric — typically specify generic VRLA or lead-acid batteries in their controller documentation, leaving the construction selection to the buyer. The metal jacket vs. polymer case decision in distribution-grid applications is made by utility engineering and procurement teams based on field experience with their actual operating environment. Utilities operating in harsh climates have generally arrived at metal-jacketed TPPL AGM as the right specification. Independent third-party validation comes from recloser manufacturer NOJA Power, which publishes technical guidance recommending TPPL metal jacket batteries for high-temperature environments based on field-validated service life of over 8 years compared to 4 years for conventional VRLA — a 2× service life advantage that aligns with what the Arrhenius relationship predicts for the temperature differential between standard and metal-jacketed cases.
The standby-application reality compounds all three observations. Float-duty batteries in harsh environments age through Arrhenius-driven grid corrosion at temperature-dependent rates over service life expectations of 8 to 12 years. The polymer case must maintain compression and integrity for the entire period, not just survive an initial qualification test. Generic content about AGM batteries usually treats vibration and heat as separate factors and time as a constant; the standby-harsh-environment reality is that all three compound, and metal jacket construction addresses the compounded failure mode through one construction choice.
For stationary harsh-environment applications, the relevant authority documents are IEEE Standards 1187 (installation design), 1188 (maintenance, testing, and replacement), and 1189 (selection guide) for VRLA stationary applications, plus ANSI/IEEE 344 for seismic qualification. ATIS 0600330 covers VRLA in telecommunications environments. These standards do not specify metal jacket construction directly — the standards specify the operational requirements that metal jacket construction is one means of meeting in harsh-environment installations.
Bottom Line
Metal jacket construction matters when the operating environment exceeds what the polymer case can sustain — and adds cost without benefit when the operating environment is benign. The metal jacket decision rests on honest assessment of the installation's actual heat, vibration, and exposure conditions, not on the vehicle category or application prestige.
If the installation is benign, save the cost. If the installation is harsh — sustained heat, significant vibration, environmental exposure, or any combination — metal jacket construction is the case-level construction choice that lets the battery deliver the service life the chemistry is capable of, in environments where polymer cases alone cannot.
