Dimensions
| Length | 13.0 in |
| Width | 6.6 in |
| Height (terminals incl.) | 7.8 in |
| Height (container) | 6.9 in |
| Weight | 60.9 lbs |
General
| Battery Technology | TPPL AGM |
| Warranty | 2 years |
Electrical
| Voltage | 12 V |
| Cold Cranking Amps (CCA) | 810 A |
| Pulse HCA 5sec (PHCA) | 1550 A |
| Nominal Capacity (20Hr) | 68 Ah |
| Reserve Capacity | 142 min |
| Terminal Type | SAE |
| Operating Temperature | -40°F to 113°F |
| Cycle Life at 80% DoD | 400 cycles |
Also known as:
PC1700T
Confirm your fitment
Enter your year, make, and model to get an exact match in seconds.
Find Your Battery →✓ Best for
Direct replacement ordered by SKU or by legacy part number. The ODS-AGM70A is the current version of the legacy PC1700T part number.
TPPL AGM construction with any-orientation mounting and charge retention through extended storage.
✕ Not for
The ODS-AGM70A has no vehicle fitment path — no BCI group code or cross-reference resolves to it, and it is never the answer to a vehicle fitment question.
Not for sustained operation above 113°F — the ODS line's rated operating temperature maximum is 113°F (176°F only with a metal jacket).
→ Intended for
Buyer replacing an existing PC1700T installation who orders by part number and needs the same footprint and terminal layout.

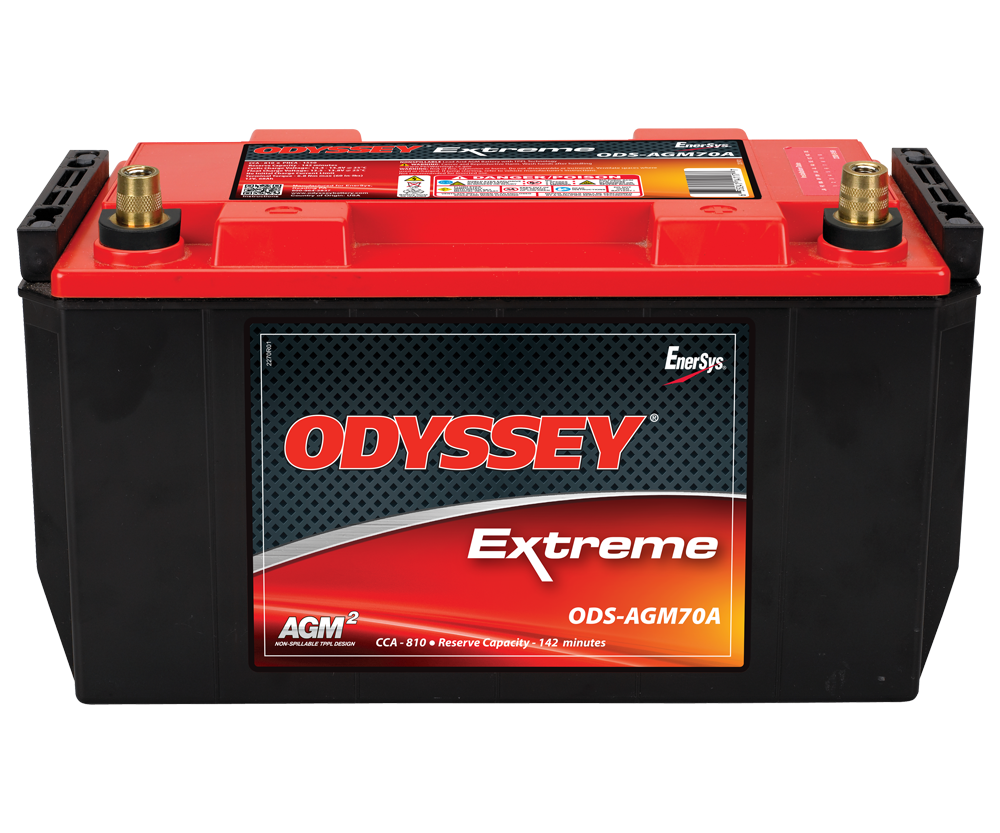

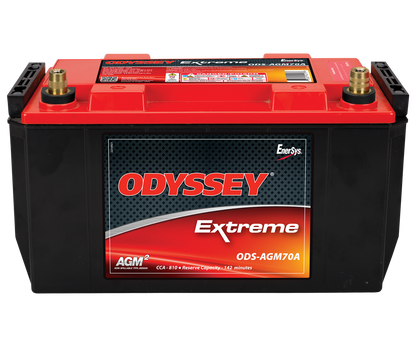

The Odyssey PC1700T is now sold as the Odyssey Powersport ODS-AGM70A under EnerSys's current part numbering — the same TPPL AGM battery, rated 810 CCA, 68 Ah (20-hour), and 142 minutes reserve capacity. Order the ODS-AGM70A anywhere your equipment specifies the PC1700T. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
If you need on the order of 800 cold cranking amps with genuine deep-cycle capability, the Odyssey Powersport ODS-AGM70A is a strong option to consider — a TPPL AGM rated 810 CCA, 68 Ah (20-hour), and 142 minutes reserve capacity, with SAE terminals in a 13 x 6.6 x 6.9 inch case at 60.9 lb. It delivers high pulse-cranking power, deep-cycle capability, and vibration resistance, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
The Odyssey Powersport ODS-AGM70A is rated 810 CCA, 68 Ah (20-hour), and 142 minutes reserve capacity, with SAE terminals in a 13 x 6.6 x 6.9 inch case at 60.9 lb. It uses Thin Plate Pure Lead (TPPL) AGM technology — vibration-resistant, with consistent voltage output, fast charge acceptance, and deep-cycle capability, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
Yes — TPPL AGM construction makes the ODS-AGM70A a dual-purpose battery: 810 CCA of cranking power with high pulse-cranking output, plus genuine deep-cycle capability backed by 68 Ah (20-hour) of capacity and 142 minutes of reserve. It recovers well from deep discharge and accepts charge quickly on a quality charger. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
The most reliable check is the part number on your current battery or in your equipment manual — if it reads PC1700T or ODS-AGM70A, this is your direct replacement. If your battery carries a different part number, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
Thin Plate Pure Lead packs more plate surface area into the case, which is how the ODS-AGM70A delivers 810 CCA with 1550 amps of 5-second pulse-cranking power. The absorbed-electrolyte design holds that output through heavy vibration, maintains consistent voltage under sustained loads, and recharges quickly between duty cycles. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
