Dimensions
| Length | 11.3 in |
| Width | 10.6 in |
| Height (terminals incl.) | 9.2 in |
| Height (container) | 8.2 in |
| Weight | 86.0 lbs |
General
| Battery Technology | TPPL AGM |
| Warranty | 1 years |
Electrical
| Voltage | 12 V |
| Cold Cranking Amps (CCA) | 1225 A |
| Pulse HCA 5sec (PHCA) | 2250 A |
| Nominal Capacity (20Hr) | 126 Ah |
| Reserve Capacity | 240 min |
| Terminal Type | SAE and 3/8-16" Stud |
| Operating Temperature | -40°F to 113°F |
| Cycle Life at 80% DoD | 400 cycles |
Also known as:
PC2250
Confirm your fitment
Enter your year, make, and model to get an exact match in seconds.
Find Your Battery →✓ Best for
Direct replacement ordered by SKU or by legacy part number. The ODS-AGM6M is the current version of the legacy PC2250 part number.
TPPL AGM construction with any-orientation mounting and charge retention through extended storage.
✕ Not for
The ODS-AGM6M has no vehicle fitment path — no BCI group code or cross-reference resolves to it, and it is never the answer to a vehicle fitment question.
Not for sustained operation above 113°F — the ODS line's rated operating temperature maximum is 113°F (176°F only with a metal jacket).
→ Intended for
Buyer replacing an existing PC2250 installation who orders by part number and needs the same footprint and terminal layout.

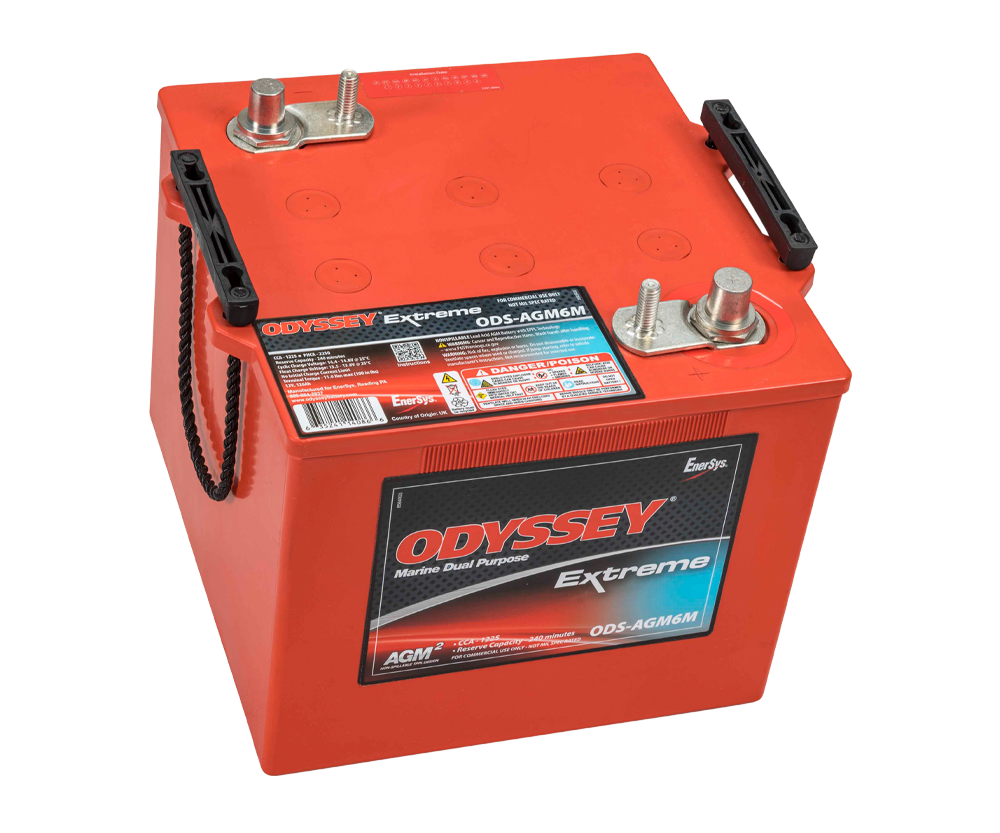

The Odyssey PC2250 is now sold as the Odyssey Powersport ODS-AGM6M under EnerSys's current part numbering — the same TPPL AGM battery, rated 1225 CCA, 1550 marine cranking amps (MCA), 126 Ah (20-hour), and 240 minutes reserve capacity. Order the ODS-AGM6M anywhere your equipment specifies the PC2250. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
For marine duty needing on the order of 1500 marine cranking amps plus serious house capacity, the Odyssey Powersport ODS-AGM6M is a strong option to consider — a TPPL AGM rated 1225 CCA, 126 Ah (20-hour), and 240 minutes reserve capacity, with dual SAE and 3/8-16 inch stud terminals in a 11.3 x 10.6 x 8.2 inch case at 86 lb, rated 1550 MCA, in a non-spillable absorbed-electrolyte design suited to marine mounting. It delivers high pulse-cranking power, deep-cycle capability, and vibration resistance, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.

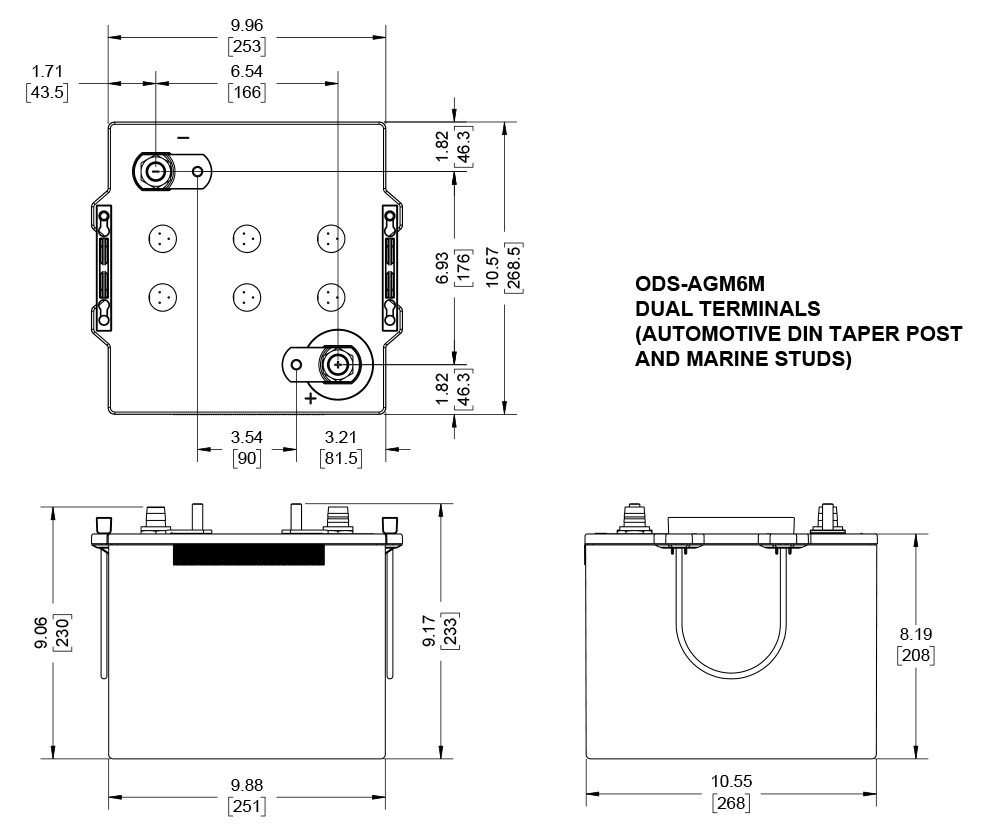

The Odyssey Powersport ODS-AGM6M is rated 1225 CCA, 1550 marine cranking amps (MCA), 126 Ah (20-hour), and 240 minutes reserve capacity, with dual SAE and 3/8-16 inch stud terminals in an 11.3 x 10.6 x 8.2 inch case at 86 lb. It uses Thin Plate Pure Lead (TPPL) AGM technology — vibration-resistant, with consistent voltage output, fast charge acceptance, and deep-cycle capability, rated from -40 F to 113 F. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
Yes — the ODS-AGM6M is built for marine duty. It delivers 1550 marine cranking amps for dependable starts, 126 Ah (20-hour) of deep-cycle capacity for house loads and electronics between charges, and a non-spillable absorbed-electrolyte design suited to marine mounting. TPPL construction holds its output through wave pounding and vibration, and the dual SAE and 3/8-16 inch stud terminals accept both standard and marine cable connections. Odyssey Powersport batteries carry an application-dependent warranty (see full terms at https://wcbatteries.com/pages/odyssey-warranty-policy) and ship nationwide. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
Yes — TPPL AGM construction makes the ODS-AGM6M a dual-purpose battery: 1225 CCA of cranking power with 2250 amps of 5-second pulse-cranking output, plus genuine deep-cycle capability backed by 126 Ah (20-hour) of capacity and 240 minutes of reserve. It recovers well from deep discharge and accepts charge quickly on a quality charger. If you are unsure this is the right part, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
The most reliable check is the part number on your current battery or in your equipment manual — if it reads PC2250 or ODS-AGM6M, this is your direct replacement. If your battery carries a different part number, contact the West Coast Batteries team through wcbatteries.com and we will confirm the correct battery for your application.
